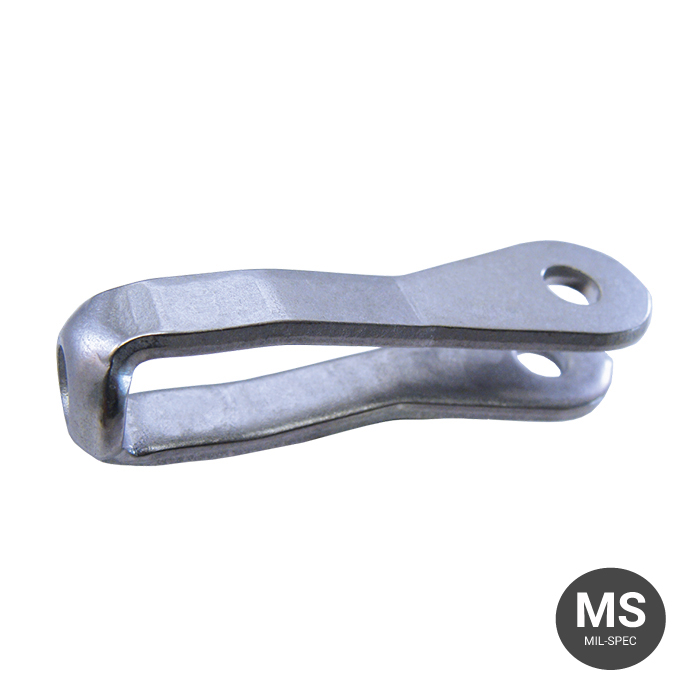

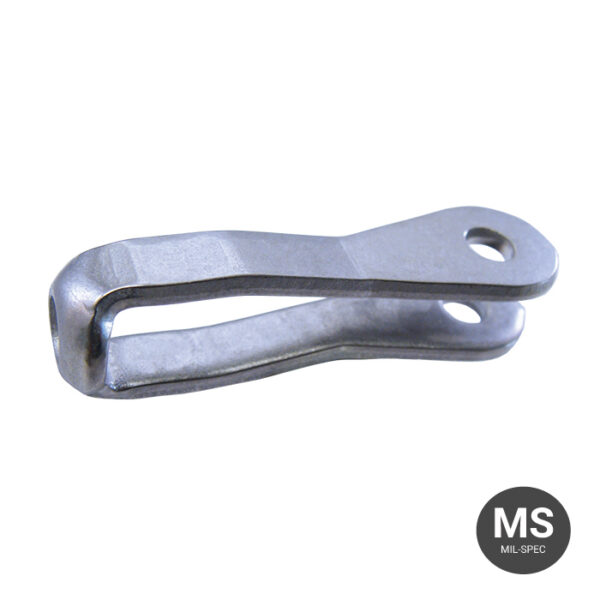

The NAS1435-K series fork end fittings are manufactured to the strict standards of NAS1435K. Also known as “strap forks” or “strap fork end fittings”, they are certified to the NAS standard for this part series, NAS1435-K. Loos Cableware ® Division NAS1435-K strap fork fittings are DFARS compliant.
Loos & Co., Inc’s wire rope terminals are domestically manufactured at our Naples, Florida facility. By purchasing from Loos & Co., Inc., you are guaranteed a well-crafted American made product, while directly supporting American jobs and the American manufacturing industry.

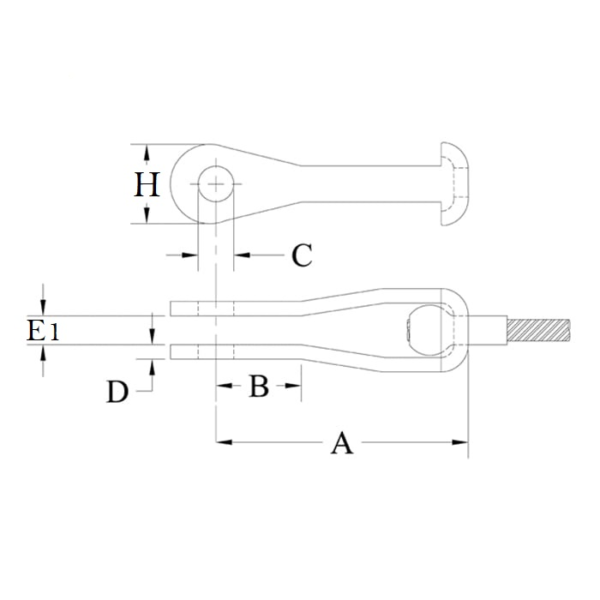

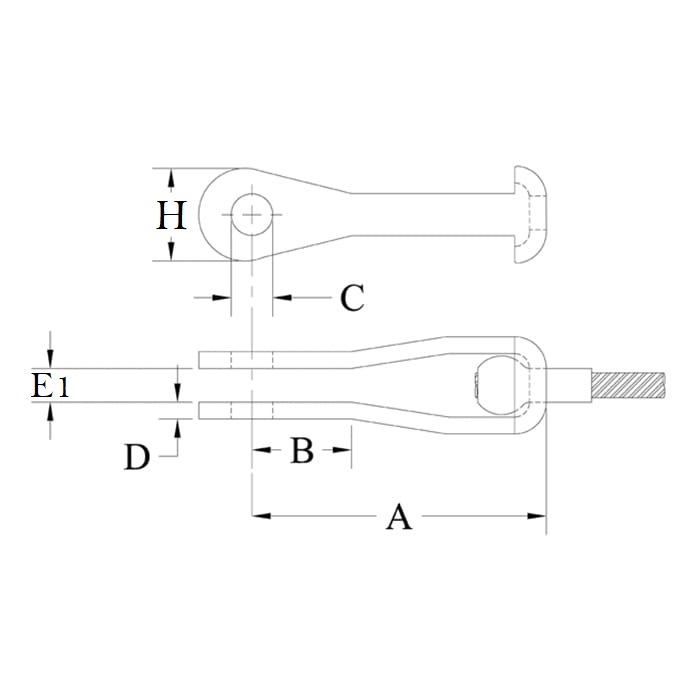

| MS Part No. | Cable Dia. | A | B | C | D | E | F | Lbs. Per Piece |
|---|---|---|---|---|---|---|---|---|
| NAS1435K2* | 1/16 | 1/1/2016 | 0.454 | 0.188 | 0.042 | 3/8 | 0.093 | 0.006 |
| NAS1435K3* | 3/32 | 1/1/2002 | 0.616 | 0.188 | 0.049 | 7/16 | 0.108 | 0.013 |
| NAS1435K4* | 1/8 | 1/5/2008 | 0.638 | 0.188 | 0.093 | 1/2 | 0.195 | 0.03 |
| NAS1435K5* | 5/32 | 1/31/1932 | 0.699 | 0.25 | 0.096 | 9/16 | 0.202 | 0.042 |
| NAS1435K6* | 3/16 | 2/3/2016 | 0.75 | 0.313 | 0.125 | 11/16 | 0.26 | 0.083 |
