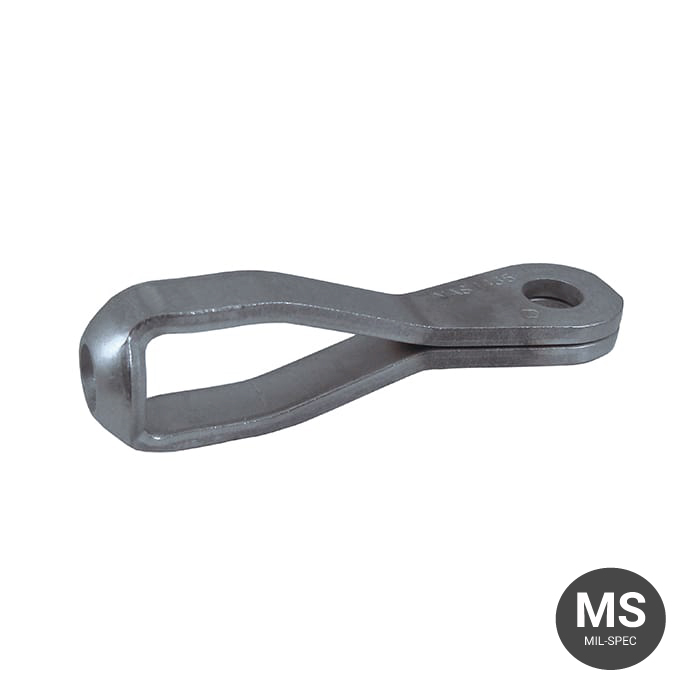

The NAS1435-E series strap eye end fittings are manufactured to the strict standards of NAS1435-E. Also known as “strap eyes” or “strap eye end fittings”, they are certified to the NAS1435-E. Loos Cableware® Division NAS1435-E strap eye end fittings are DFARS compliant.
Loos & Co., Inc’s wire rope terminals are domestically manufactured at our Naples, Florida facility. By purchasing from Loos & Co., Inc., you are guaranteed a well-crafted American made product, while directly supporting American jobs and the American manufacturing industry.
Also available in Commercial Grade (SP1 Series)

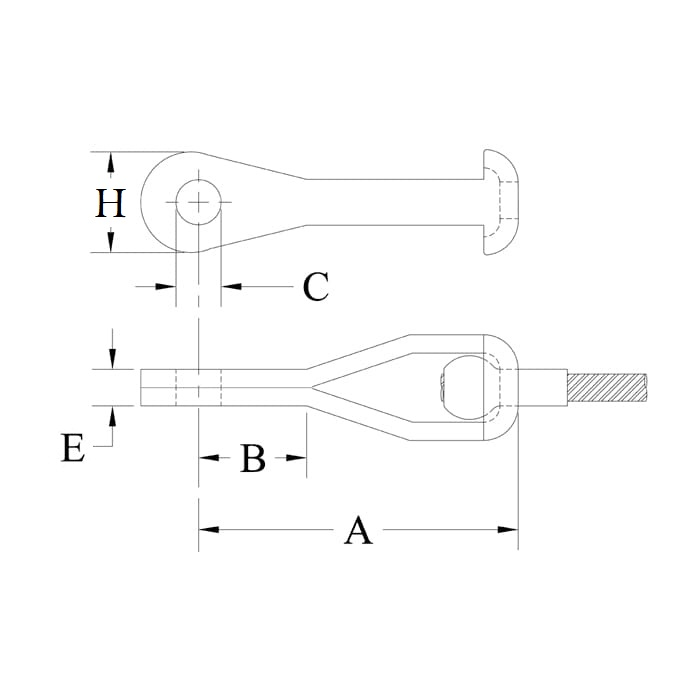

| MS Part No. | Cable Dia. | A | B | C | E | H | Lbs. Per Piece. |
|---|---|---|---|---|---|---|---|
| NAS1435E2* | 1/16 | 1-1/16 | 0.454 | 0.188 | 0.088 | 3/8 | 0.006 |
| NAS1435E3* | 3/32 | 1-1/2 | 0.616 | 0.188 | 0.103 | 7/16 | 0.013 |
| NAS1435E4* | 1/8 | 1-5/8 | 0.638 | 0.188 | 0.19 | 1/2 | 0.03 |
| NAS1435E5* | 5/32 | 1-31/32 | 0.699 | 0.25 | 0.197 | 9/16 | 0.042 |
| NAS1435E6* | 3/16 | 2-3/16 | 0.75 | 0.313 | 0.255 | 11/16 | 0.083 |
| * Denotes Stock Item |
