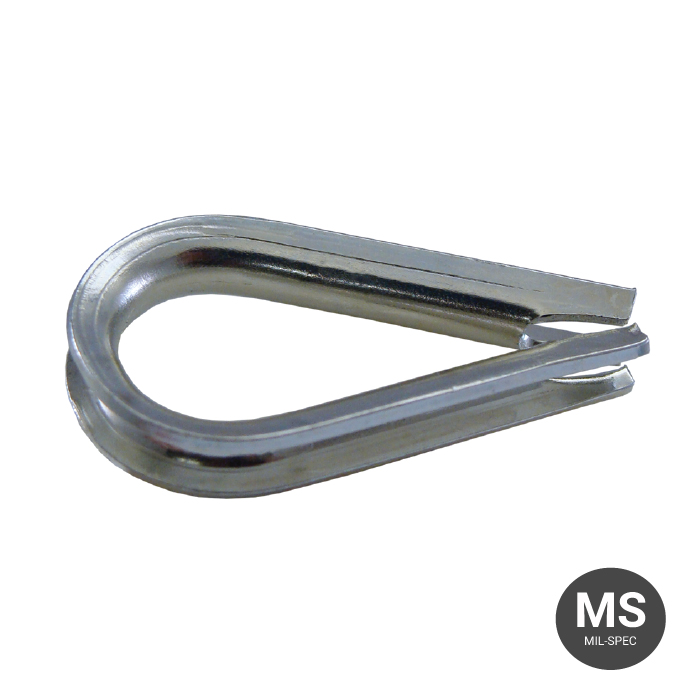

AN100 Thimble

SKU: SF031750

AN thimbles come in either cold-rolled steel (zinc plated) or stainless steel (natural finish). Fit cable diameters from 1/16″ to 3/8″ to meet the most demanding marine, aircraft or industrial requirements.

AN STANDARD: YES

MADE IN THE USA: YES

Loos & Co., Inc’s wire rope terminals are domestically manufactured at our Naples, Florida facility. By purchasing from Loos & Co., Inc., you are guaranteed a well-crafted American made product, while directly supporting American jobs and the American manufacturing industry.

Sizes

Cold Rolled Steel Zinc Plated	Stainless Steel	To fit Cable Dia.	A	B	C	D	E	F	Wt. per 1,000
AN100-3*	AN100-C3*	3/64, 1/16, 5/64, 3/32	0.35	43/64	3/16	3/32	1/31	5/64	1.5
AN100-4*	AN100-C4*	3/32, 7/64, 1/8	0.35	45/64	7/32	9/64	1/31	5/64	4.3
AN100-5*	AN100-C5*	5/32	0.4	51/64	7/32	11/64	1/31	7/64	6
AN100-6*	AN100-C6*	3/16	0.5	1	5/16	13/64	1/31	11/64	9.8
AN100-8*	AN100-C8*	7/32, 1/4	0.7	1-13/32	13/32	17/64	1/31	11/64	15
AN100-10	AN100-C10*	9/32, 5/16	0.9	1-51/64	7/16	21/64	1/25	7/32	35
AN100-12*	AN100-C12*	3/8	1	2	5/8	25/64	3/50	17/64	85
